Mvc Testing With a Configuration Class

Mvc Testing With a Configuration Class

Writing a test for a controller I discovered something I would like to share. What I noticed was that even if my MockMvc test was expecting 200, and my controller returned either 200 or 204, my test failed with a 406.

Background

A little bit of background to the problem. This controller was added to an existing project containing countless packages. To run the test I would need to load the application context, but to avoid loading all of it I created a inner static class in my test class. This inner static class serves as a TestApp which is annotated by @ComponentScan and where I tell it which packages to include. In addition this class is annotated with @SpringBootConfiguration which includes, among other annotations, the @Configuration which means that the class is declared as a bean and can be picked up by the Spring container, and therefore found by @ComponentScan.

The test-class needs annotated with @WebAppconfiguration and @ContextConfiguration to properly load the application context as the webAppContext is added to the MockMvcBuilders when creating the mockMvc object used in the tests. I attempted to get this working by annotating the test-class with @SpringBootTest(classes = ControllerTest.TestApp.class) to tell it to use the inner class. However this did not work as the result was a 406 whenever the controller attempted to return anything with a body. The solution was to remove the @SpringBootTest annotation and replace it with @WebMvcTest instead. Below I will explain what this looks like with a few examples.

If you are unsure or have forgotten what the 200, 204, and 406 HTTP status codes means, here is a short reminder:

• 200 = Status ok
• 204 = No Content (response is still ok, but its empty)
• 406 = Not acceptable ( The content of the response is not matching accepted values. i.e expecting JSON got XML )

The problem

As mentioned at the start of this post the error returned when running the test was a 406, when expecting to have a 200.

1java.lang.AssertionError: Status expected:<200> but was:<406>
2Expected :200
3Actual   :406
4<Click to see difference>
5
6	at org.springframework.test.util.AssertionErrors.fail(AssertionErrors.java:59)
7	at org.springframework.test.util.AssertionErrors.assertEquals(AssertionErrors.java:122)
8	at org.springframework.test.web.servlet.result.StatusResultMatchers.lambda$matcher$9(StatusResultMatchers.java:627)
9	at org.springframework.test.web.servlet.MockMvc$1.andExpect(MockMvc.java:214)

The controller calls the service which calls the repository which returns a set of UtilityServlet if the set contains elements, if not it returns a HTTP status 204 no content.

 1@RestController
 2@RequestMapping("/api/utility/servlet")
 3@RequiredArgsConstructor
 4public class UtilityServletController {
 5
 6    private final UtilityServletService service;
 7
 8    @GetMapping(value = "/")
 9    public ResponseEntity<Set<UtilityServlet>> findAll() {
10        Set<UtilityServlet> servlets = service.findAllUtilityServlets();
11        return servlets.size() > 0 ? ResponseEntity.ok().body(servlets) : ResponseEntity.noContent().build();
12    }
13}

In the test I wanted to mock the service, and when mocking something the test needs to be told what should happen when the mocked service is called. For this i use Mockito.when() and return a set of elements. This is useful when you make unit tests because you can isolate the system under testing and not having to worry about finding something in a database.

 1    @Test
 2    public void findAllShouldReturnMultipleServlets() throws Exception {
 3        Set<UtilityServlet> servlets = new HashSet<>();
 4        servlets.add(servletA);
 5        servlets.add(servletB);
 6
 7        Mockito.when(utilityServletService.findAllUtilityServlets()).thenReturn(servlets);
 8        mockMvc.perform(get("/api/utility/servlet/")
 9                        .accept(MediaType.APPLICATION_JSON))
10                .andExpect(status().isOk())
11                .andExpect(content().contentType(MediaType.APPLICATION_JSON));
12
13
14        verify(utilityServletService, times(1)).findAllUtilityServlets();
15    }

The status() method in the .andExpect(status().isOk()) is actually from MockMvcResultMatchers, and the same with content(). These are imported at the top of the class via a static import which exposes those methods and makes them available to use without first specifying the class name. See the GitHub repository for examples.

After the API-call has been done and the status code returned I use Mockito again to ensure that the service-method has been called exactly one time. This is done using the Mockito.verify()method. This has also been imported as a static method to make the code shorter and more concise, this is a personal preference.

The TestApp class mentioned above is a inner class within the test class itself and is

1    @ComponentScan(basePackages = {"no.jaflaten.dev.mvcwithconfigurationclass.example"})
2    @SpringBootConfiguration
3    public static class UtilityServletTestApp {
4    }

Solution

To fix the HTTP status 406 and get the 200 OK return code that was expected I had to annotate the test-class with @WebMvcTest. Combined with the other annotations everything is loaded correctly and the test executes as expected.

 1@ContextConfiguration
 2@WebAppConfiguration
 3@WebMvcTest
 4public class UtilityServletControllerTest {
 5
 6...
 7// initializing the mockMvc
 8    @BeforeEach
 9    public void setup() {
10        mockMvc = MockMvcBuilders
11                .webAppContextSetup(context)
12                .build();
13        ...
14    }
15...
16
17}

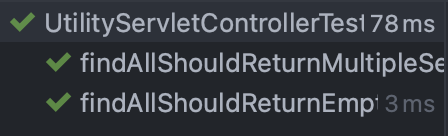

The test is green!

The 406 could be correct in some cases if your expected content type is not matching the one that the method returns. In the test shown above I specified that i accepted and expected application/json, but this is not strictly necessary for the test to work.

I hope this was helpful to you. Thank you for reading.

The source code used in this example is available in this GitHub repository.
